VACCINE REFRIGERATORS & FREEZERS

The compression range consists of several ice-lined refrigerators and freezers for national and regional centers provided with electricity, gas or kerosene for optimal adaptation to power constraints at health centers.


TCW 40 RAC

Vaccine Refrigerator with 45 L | 1.59 cu ft gross volume.

  • Gross volume: 45 L | 1.59 cu ft

  • Vaccine storage capacity: 36.5 L

  • Energy source: AC

  • Set Temperature: +4°C

  • External dimensions (HxWxD): 900 x 1030 x 780 mm

  • Net weight: 109 kg

  • Remote monitoring: RTMD included


TCW 80 AC

Vaccine Refrigerator with 82.5 L | 2.91 cu ft gross volume.

  • Gross volume: 82.5 L | 2.91 cu ft

  • Vaccine storage capacity: 80.5 L

  • Energy source: AC

  • Set Temperature: +4°C

  • External dimensions (HxWxD): 900 x 1030 x 780 mm

  • Net weight: 94 kg

  • Remote monitoring: RTMD included


TCW 2000 AC

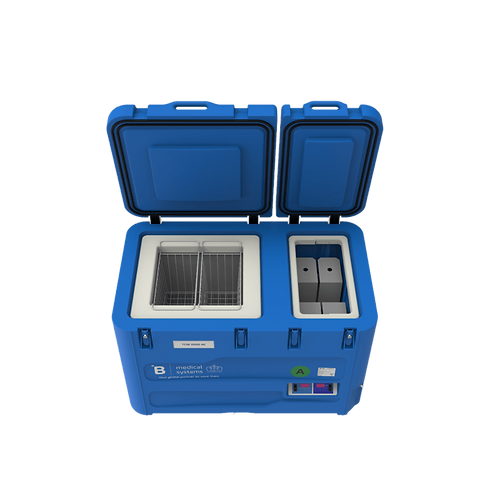

Vaccine Refrigerator & Ice-pack Freezer with 42 L | 1.48 cu ft gross volume.

  • Gross volume: 42 L | 1.48 cu ft

  • Vaccine storage capacity: 60 L

  • Ice-pack storage (at 0.6 L): 20

  • Freezer gross volume: 42 L | 1.48 cu ft

  • Energy source: AC

  • Set Temperature: +5°C (R) | -20°C (F)

  • External dimensions (HxWxD): 910 x 1270 x 780 mm

  • Net weight: 107 kg

  • Remote monitoring: RTMD included


TCW 2000 DC

Vaccine Refrigerator & Ice-pack Freezer with 42 L | 1.48 cu ft gross volume.

  • Gross volume: 42 L | 1.48 cu ft

  • Vaccine storage capacity: 76 L

  • Ice-pack storage (at 0.6 L): 24

  • Freezer gross volume: 42 L | 1.48 cu ft

  • Energy source: DC

  • Set Temperature: +5°C (R) | -8°C (F)

  • External dimensions (HxWxD): 910 x 1270 x 780 mm

  • Net weight: 100 kg

  • Remote monitoring: RTMD included


TCW 3000 AC

Multimode: Vaccine Refrigerator or Vaccine/Ice-pack Freezer with 204 L | 7.2 cu ft gross volume.

  • Gross volume: 204 L | 7.2 cu ft

  • Vaccine storage capacity: 150 L

  • Energy source: AC

  • Set Temperature: +5°C (R) | -20°C (F)

  • External dimensions (HxWxD): 900 x 1030 x 780 mm

  • Net weight: 105 kg

  • Remote monitoring: RTMD included


TCW 3000 DC

Vaccine Refrigerator or Ice-pack Freezer with 204 L | 7.2 cu ft gross volume.

  • Gross volume: 204 L | 7.2 cu ft

  • Vaccine storage capacity: 109.5 L

  • Energy source: DC

  • Set Temperature: +5°C

  • External dimensions (HxWxD): 910 x 1270 x 780 mm

  • Net weight: 94 kg

  • Remote monitoring: RTMD included


TCW 4000 AC

Vaccine Refrigerator with 249 L | 8.79 cu ft gross volume.

  • Gross volume: 249 L | 8.79 cu ft

  • Vaccine storage capacity: 240 L

  • Energy source: AC

  • Set Temperature: +5°C

  • External dimensions (HxWxD): 915 x 1625 x 780 mm

  • Net weight: 148 kg

  • Remote monitoring: RTMD included


TFW 3000 AC

Waterpack freezer with 204 L | 7.2 cu ft gross volume.

  • Gross volume: 204 L | 7.2 cu ft

  • Vaccine storage capacity:

  • Ice-pack storage (at 0.6 L): 162

  • Freezer gross volume:

  • Energy source: AC

  • Set Temperature: -16°C

  • External dimensions (HxWxD): 910 x 1270 x 780 mm

  • Net weight: 94 kg

  • Remote monitoring: RTMD included


RCW 50 AC

Vaccine Refrigerator & Ice-pack Freezer with 80 L | 2.83 cu ft gross volume.

  • Gross volume: 80 L | 2.83 cu ft

  • Vaccine storage capacity: 24 L

  • Ice-pack storage (at 0.6 L): 8

  • Energy source: AC

  • External dimensions (HxWxD): 830 x 720 x 980 mm

  • Net weight: 61 kg

  • Remote monitoring: RTMD included


RCW 50 DC

Vaccine Refrigerator & Ice-pack Freezer with 80 L | 2.83 cu ft gross volume.

  • Gross volume: 80 L | 2.83 cu ft

  • Vaccine storage capacity: 24 L

  • Ice-pack storage (at 0.6 L): 8

  • Energy source: DC

  • External dimensions (HxWxD): 830 x 720 x 980 mm

  • Net weight: 57 kg

  • Remote monitoring: RTMD included
